產(chǎn)品描述

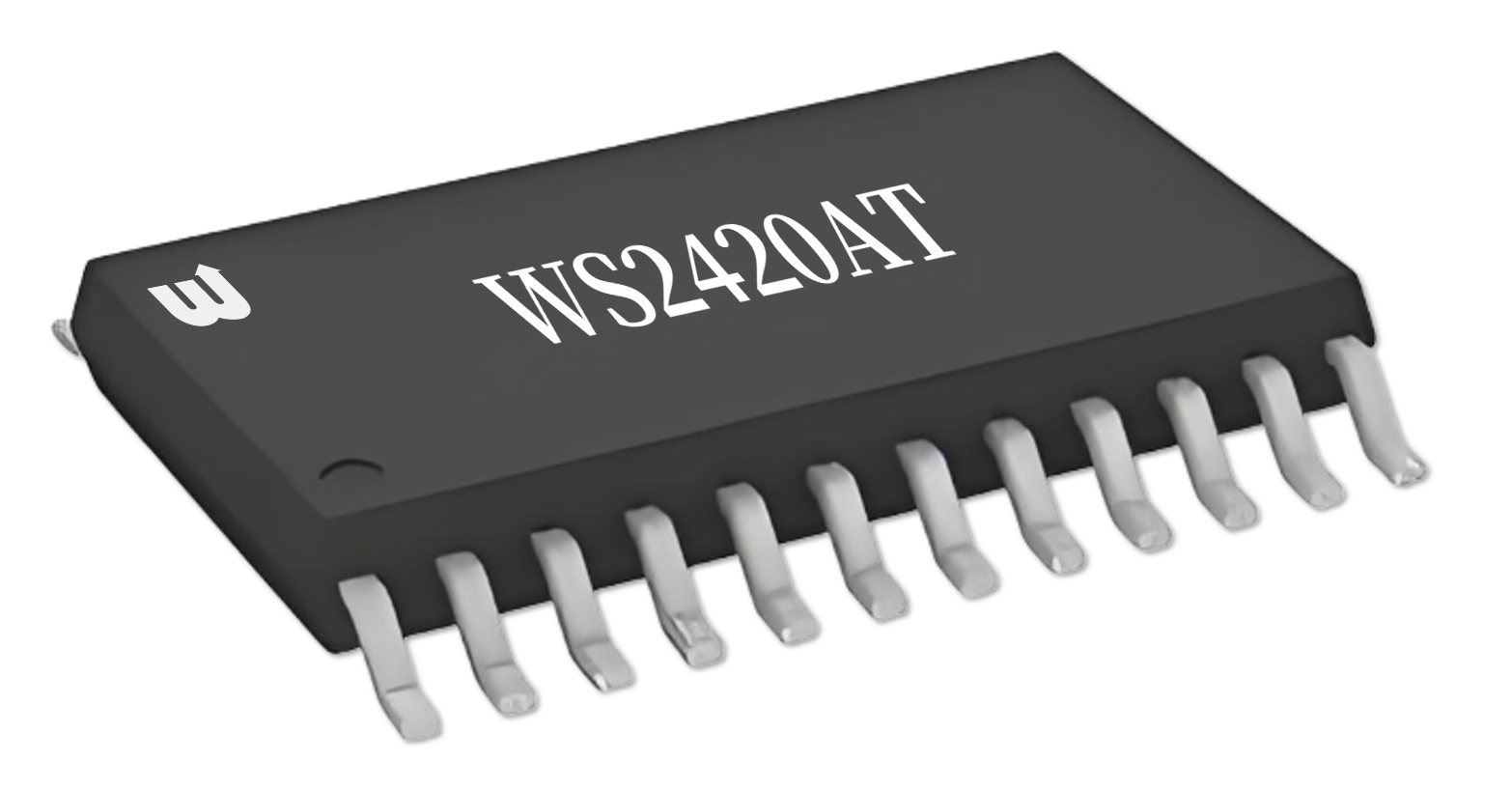

12V/24V smart analog high-side MOSFET gate driver

主要特點(diǎn)

• AEC-Q100 qualified

• ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13

• Two channels device with two high-side gate driver outputs

• 3 Ω pull-down, 50 Ω pull-up for fast switch on/off

• Support back-to-back MOSFET topologies (common drain and common source)

• Two bidirectional high-side analog current sense interfaces with externally adjustable gain

• Adjustable overcurrent/short-circuit protection

• Versatile comparator to implement: adjustable I-t wire protection, overvoltage/undervoltage or overtemperature protection

規(guī)格書
